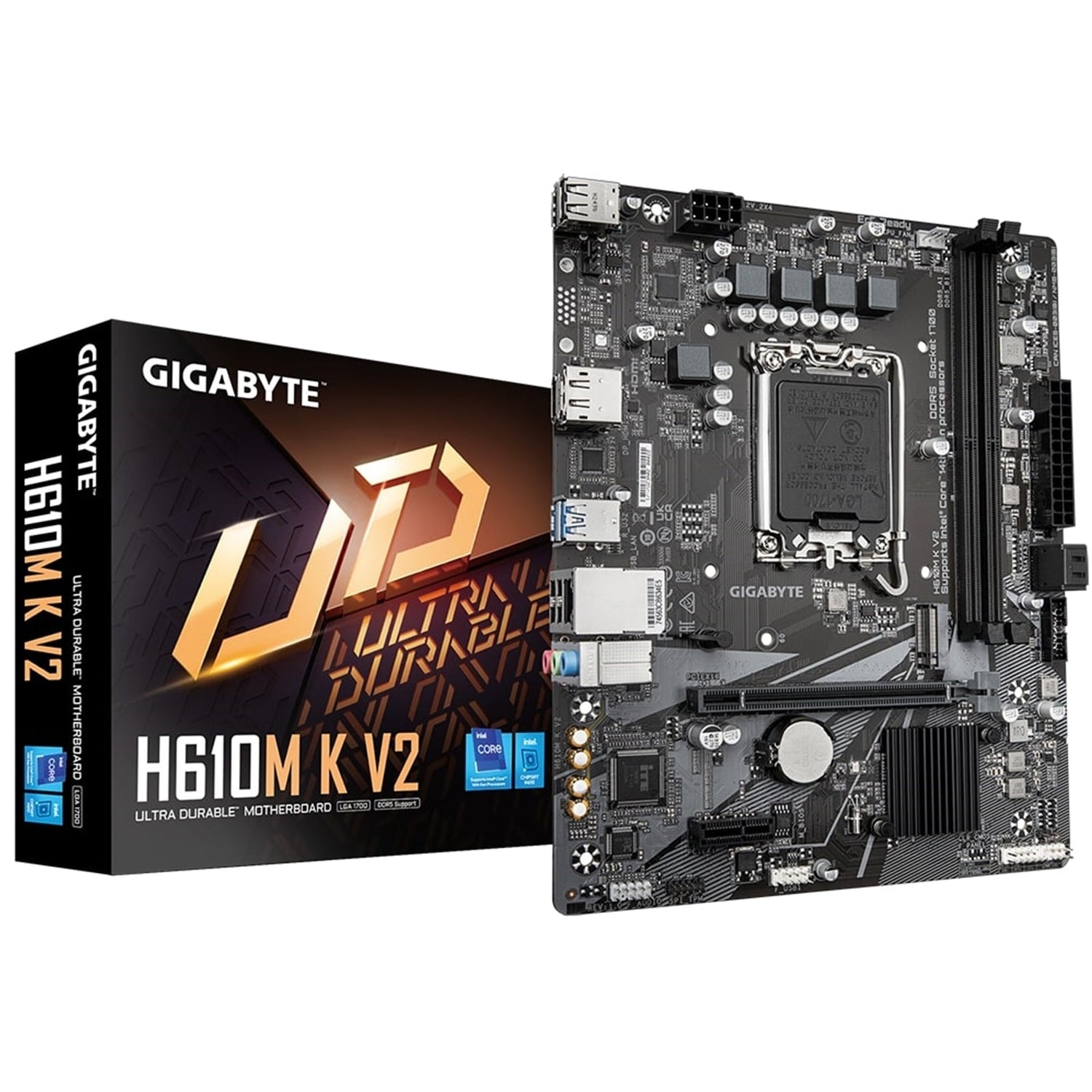

GIGABYTE H610 Micro ATX Motherboard (LGA1700, DDR5)
Experience a balanced platform for Intel 14th, 13th, and 12th Gen processors with the GIGABYTE H610 motherboard, featuring PCIe 4.0 design, DDR5 memory support, robust power delivery, and comprehensive connectivity in a compact micro ATX form factor.
Key Features
- Supports Intel Processors
- Intel LGA1700 socket
-
Supports 14th, 13th, and 12th Gen Intel Core, Pentium Gold, and Celeron processors
-
Extreme DDR5 Memory Performance
- Dual Channel Non-ECC Unbuffered DDR5, 2 DIMMs
- Up to 128 GB system memory (64 GB per DIMM)
- DDR5 architecture with:
- Unlocked Native DDR5 Voltage
- Xtreme Memory Routing
- XMP 3.0 and Extreme Memory Profile (XMP) support
- Exclusive DDR5 tuning capability with user-friendly UI
-
Brings 50% more bandwidth compared to previous-generation memory
-
Graphics Output
- Integrated Intel HD Graphics support (CPU dependent)
- 1 x HDMI 2.1 port (4096x2160 @ 60 Hz, HDCP 2.3)
-
1 x DisplayPort 1.2 (4096x2304 @ 60 Hz, HDCP 2.3)
-
Storage & Expansion
- 1 x NVMe PCIe 3.0 x4/x2 M.2 connector (Socket 3, M key, type 2280/2260)
- 2 x SATA 6 Gb/s connectors
- 1 x PCIe 4.0 x16 slot (from CPU)
-
1 x PCIe 3.0 x1 slot (from chipset)
-
Networking
- Realtek GbE LAN chip
-
GbE LAN with bandwidth management software to help improve network latency and maintain low ping times
-
Cooling & Monitoring – Smart Fan 6
- Multiple temperature sensors
- Hybrid fan headers with FAN STOP
- Voltage, temperature, and fan speed detection
- Water cooling flow rate detection
-
Fan fail warning and fan speed control (fan dependent)
-
Audio
- Realtek High Definition Audio codec
- 2/4/5.1/7.1-channel audio
- High quality audio capacitors and Audio Noise Guard
-
Configurable jack functionality via audio software
-
Ultra Durable & Power Delivery
- Solid Pin ATX 12V 8-pin power connector
- Larger contact area and more metal content for higher power and heat tolerance
- Designed for ultra durability and longer lifespan
-
Anti-Sulfur Resistors Design
-
Software & Utilities
- GIGABYTE APP Center (apps may vary by model), including:
- @BIOS
- EasyTune
- Smart Backup
- System Information Viewer
- LAN bandwidth management software
- Norton Internet Security (OEM version)
-
Support for Q-Flash
-
Operating System Support
- Windows 11 64-bit
- Windows 10 64-bit
Specifications
CPU
| Feature |
Description |
| Socket |
LGA1700 |
| Supported CPUs |
14th, 13th, and 12th Gen Intel Core, Pentium Gold, and Celeron processors |
| L3 Cache |
Varies by CPU |
Refer to the official CPU Support List for detailed compatibility.
Chipset
| Feature |
Description |
| Chipset |
Intel H610 Express Chipset |
Memory
| Feature |
Description |
| Supported CPUs (Memory) |
14th & 13th Gen Intel Core i9/i7; 13th Gen Core i5/i3; 12th Gen Core, Pentium Gold, Celeron |
| Supported DDR5 Speeds (i9/i7 14th & 13th Gen) |
DDR5 5600/5200/4800/4400 MT/s |
| Supported DDR5 Speeds (13th Gen i5/i3 & 12th Gen Core/Pentium Gold/Celeron) |
DDR5 4800/4400 MT/s |
| DIMM Slots |
2 x DDR5 DIMM sockets |
| Max Capacity |
Up to 128 GB (64 GB per DIMM) |
| Architecture |
Dual channel memory architecture |
| ECC Support |
Supports ECC Un-buffered DIMM 1Rx8/2Rx8 modules (operates in non-ECC mode) |
| Non-ECC Support |
Supports non-ECC Un-buffered DIMM 1Rx8/2Rx8/1Rx16 modules |
| Overclocking |
Supports Extreme Memory Profile (XMP) memory modules |
CPU and memory configuration may affect supported memory type, speed, and DRAM count. Refer to the Memory Support List on GIGABYTE’s website.
Onboard Graphics
| Feature |
Description |
| Integrated GPU |
Intel HD Graphics (graphics specifications vary by CPU) |
| HDMI |
1 x HDMI, up to 4096x2160 @ 60 Hz, HDMI 2.1, HDCP 2.3, native HDMI 2.1 TMDS compatible |
| DisplayPort |
1 x DisplayPort, up to 4096x2304 @ 60 Hz, DisplayPort 1.2, HDCP 2.3 |
Audio
| Feature |
Description |
| Codec |
Realtek Audio CODEC |
| Audio Standard |
High Definition Audio |
| Channels |
2/4/5.1/7.1-channel (configurable via audio software) |
LAN
| Feature |
Description |
| Controller |
Realtek GbE LAN chip |
| Speed |
1 Gbps / 100 Mbps / 10 Mbps |
| Software |
LAN bandwidth management application |
Expansion Slots
| Source |
Slot |
Standard |
Mode |
| CPU |
1 x PCI Express x16 |
PCIe 4.0 |
x16 |
| Chipset |
1 x PCI Express x1 |
PCIe 3.0 |
x1 |
Storage Interface
| Controller |
Connector |
Description |
| Chipset |
1 x M.2 (Socket 3, M key) |
Type 2280/2260, PCIe 3.0 x4/x2 SSD support |
| Chipset |
2 x SATA 6 Gb/s |
SATA storage support |
USB
| Controller |
Ports |
Location |
| Chipset |
4 x USB 3.2 Gen 1 |
2 rear, 2 via internal header |
| Chipset |
6 x USB 2.0/1.1 |
4 rear, 2 via internal header |
Internal I/O Connectors
- 1 x 24-pin ATX main power connector
- 1 x 8-pin ATX 12V power connector
- 1 x CPU fan header
- 1 x system fan header
- 1 x M.2 Socket 3 connector
- 2 x SATA 6 Gb/s connectors
- 1 x front panel header
- 1 x front panel audio header
- 1 x USB 3.2 Gen 1 header
- 1 x USB 2.0/1.1 header
- 1 x Trusted Platform Module header
- For GC-TPM2.0 SPI / GC-TPM2.0 SPI 2.0 / GC-TPM2.0 SPI V2 modules only
- 1 x Clear CMOS jumper
Back Panel Connectors
- 1 x HDMI port
- 1 x DisplayPort
- 2 x USB 3.2 Gen 1 ports
- 4 x USB 2.0/1.1 ports
- 1 x RJ-45 LAN port
- 3 x audio jacks
I/O Controller
Hardware Monitoring
- Voltage detection
- Temperature detection
- Fan speed detection
- Water cooling flow rate detection
- Fan fail warning
- Fan speed control (support depends on installed fan)
BIOS
- 1 x 128 Mbit flash
- AMI UEFI BIOS (licensed)
- Supports: PnP 1.0a, DMI 2.7, WfM 2.0, SM BIOS 2.7, ACPI 5.0
Unique Features
- Support for GIGABYTE APP Center*
- @BIOS
- EasyTune
- Smart Backup
- System Information Viewer
- Support for Q-Flash
*Available apps and functions may vary by motherboard model and specifications.
Bundled Software
- Norton Internet Security (OEM version)
- LAN bandwidth management software
Operating System
- Windows 11 64-bit
- Windows 10 64-bit
Form Factor
| Feature |
Description |
| Form Factor |
Micro ATX |
| Dimensions |
22.6 cm x 18.5 cm |
With PCIe 4.0 design, DDR5 support, Smart Fan 6, GbE LAN with bandwidth management, and Ultra Durable components including solid pin power connectors and Anti-Sulfur Resistors, this GIGABYTE H610 motherboard provides a stable, feature-rich foundation for Intel LGA1700 systems.
