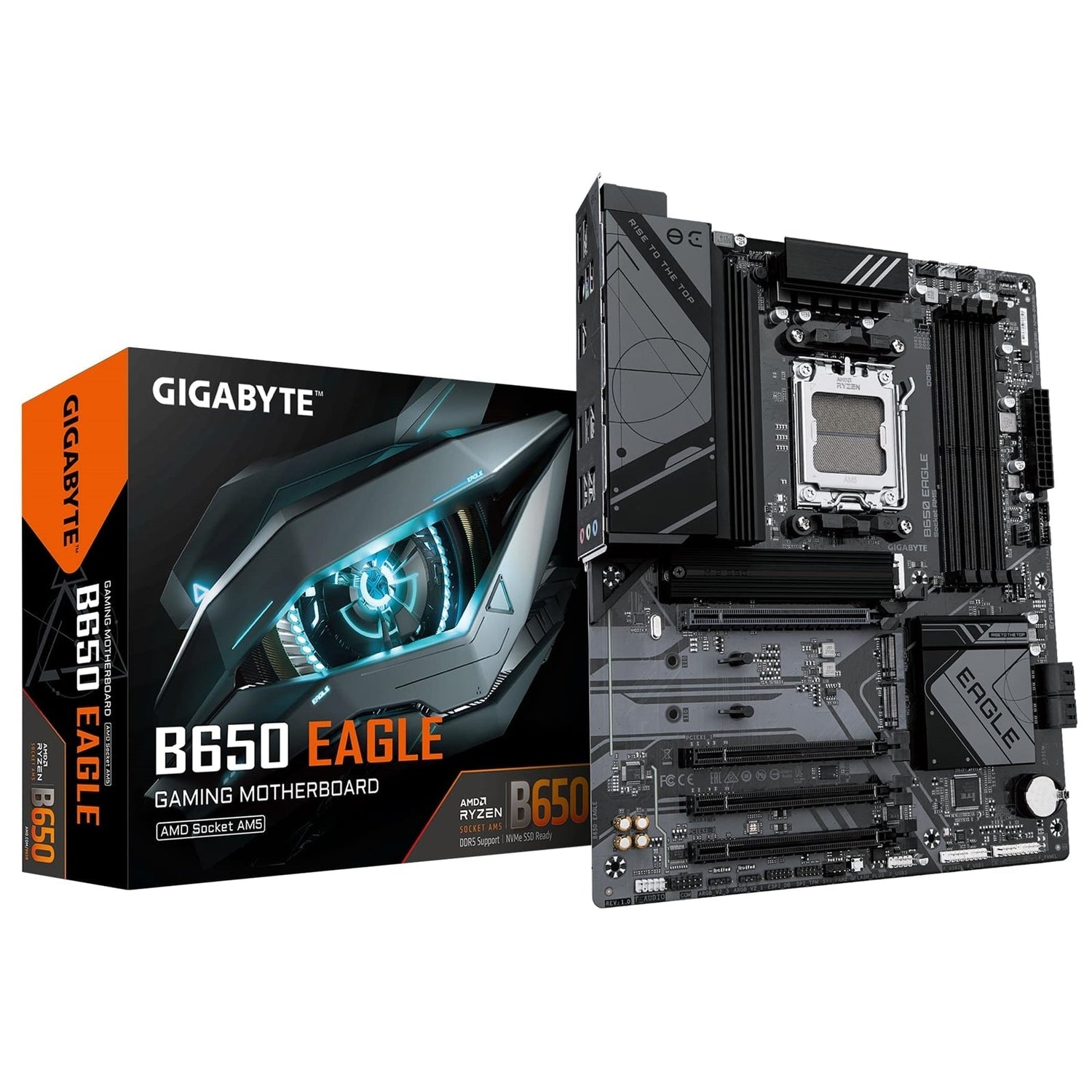

GIGABYTE B650 EAGLE Motherboard (AMD Socket AM5)
The GIGABYTE B650 EAGLE motherboard delivers a solid platform for AMD Ryzen 7000, Ryzen 8000, and Ryzen 9000 Series processors, combining robust power delivery, advanced thermal solutions, high-speed storage, and flexible connectivity in a durable ATX design.
Key Features
AMD AM5 Platform Support
-
Socket: AMD Socket AM5
-
CPU Support: AMD Ryzen 7000 / Ryzen 8000 / Ryzen 9000 Series Processors
Power & Performance
-
12+2+2 Phases Digital VRM Solution for stable and efficient power delivery
-
Digital VRM Design using high-quality components
-
GIGABYTE Ultra Durable construction for long-lasting, reliable performance
Memory Performance
-
Dual Channel DDR5
- 4 x SMD DDR5 DIMM sockets, up to 256 GB (64 GB per DIMM)
- Supports DDR5 7600(OC)/7200(OC)/7000(OC)/6800(OC)/6600(OC)/6400(OC)/6200(OC)/6000(OC)/5600(OC)/5200/4800/4400 MT/s
- Supports non-ECC Un-buffered DIMM 1Rx8/2Rx8/1Rx16 modules
-
AMD EXPO™ & Intel XMP memory profile support
- DDR5 EXPO & XMP overclocking up to 7600 and beyond (platform tested and proven by GIGABYTE)
Storage & Expansion
- SuperSpeed Storage:
- 1 x PCIe 5.0 M.2 connector
- 2 x PCIe 4.0 M.2 connectors
- PCIe Slots:
- 1 x PCIe x16 slot (from CPU)
- 1 x PCIe x16 physical slot (x1 mode, PCIe 3.0 from chipset)
-
PCIe 4.0 Hardware Design ready for PCIe 4.0 x16 and PCIe 4.0 M.2 devices
-
RAID Support: RAID 0, 1, 10 for both NVMe and SATA storage devices
Advanced Thermal Design
-
Fully Covered MOSFET Heatsink
-
M.2 Thermal Guard for enhanced 25110 M.2 SSD performance and stability
- Designed to ensure VRM power stability and sustained SSD performance
Networking & Connectivity
-
Fast Networks: Realtek GbE LAN (1 Gbps/100 Mbps/10 Mbps)
-
Bandwidth Management to help reduce latency and maintain low ping times in busy LAN environments
- Extended Connectivity:
- DisplayPort and HDMI outputs
- Rear USB 10Gb/s (USB 3.2 Gen 2)
- USB Type-C on rear and via internal header
Audio
-
Realtek High Definition Audio CODEC
- 2/4/5.1/7.1-channel audio support
-
High-End Audio Capacitors for high-resolution, high-fidelity sound
-
Audio Noise Guard design to isolate sensitive audio components from PCB-level noise
Cooling & Fan Control – Smart Fan 6
- Supports PWM/DC fans and pumps with customizable control
-
High Current Support: Each fan header supports up to 24W (12V x 2A) with over-current protection
-
Precision Control: Multiple temperature and fan speed control points for accurate fan curves
-
Dual Curve Mode:
- Slope mode – linear fan speed curve
- Stair mode – constant fan speed within set temperature intervals
-
Fan Stop: Fans can stop completely below user-defined temperature thresholds
Smart Fan 6 BIOS UI Enhancements:
- Enhanced fan curve control with more points (from 5 to 7) and larger fan speed graph
- Slope/Stair dual graph mode
- Manual input for advanced fan speed tuning
- EZ Tuning: set 4 simple temperature/fan speed points to auto-generate a curve
- Fan curve profile saving in BIOS ROM, retained after BIOS updates
Easy Installation & User-Friendly Design
EZ-Latch
-
PCIe x16 Slot with Quick Release Design
- Easily unlock the PCIe latch to remove graphics cards without hassle
Q-Flash Plus
-
Update BIOS without CPU, memory, or graphics card installed
Q-Flash Plus Steps:
1. Plug the 24-pin and 8-pin power supply cables into the motherboard.
2. Download the motherboard BIOS file, rename it to "gigabyte.bin", save it to a FAT32-formatted USB flash drive, and insert it into the Q-FLASH PLUS USB port.
3. Press the Q-FLASH PLUS button to start automatic BIOS updating.
Software & Management
- Support for GIGABYTE Control Center (GCC)
- Support for Q-Flash and Q-Flash Plus
- Included software: Norton Internet Security (OEM version), LAN bandwidth management software
Specifications
General
| Category |
Details |
| Form Factor |
ATX, 30.5 cm x 24.4 cm |
| Chipset |
AMD B650 |
CPU
| Specification |
Details |
| Socket |
AMD Socket AM5 |
| Supported CPUs |
AMD Ryzen 7000 / Ryzen 8000 / Ryzen 9000 Series |
Memory
| Specification |
Details |
| Memory Type |
DDR5 |
| DIMM Slots |
4 x DDR5 DIMM sockets |
| Max Capacity |
Up to 256 GB (64 GB per DIMM) |
| Architecture |
Dual channel |
| Supported Speeds |
7600(OC)/7200(OC)/7000(OC)/6800(OC)/6600(OC)/6400(OC)/6200(OC)/6000(OC)/5600(OC)/5200/4800/4400 MT/s |
| Module Support |
Non-ECC Un-buffered DIMM 1Rx8/2Rx8/1Rx16 |
| Profile Support |
AMD EXPO™, XMP |
Onboard Graphics
| Output |
Max Resolution |
| DisplayPort |
3840 x 2160 @ 144 Hz |
| HDMI |
4096 x 2160 @ 60 Hz |
Audio
| Specification |
Details |
| Codec |
Realtek Audio CODEC |
| Channels |
2/4/5.1/7.1-channel HD Audio |
LAN
| Specification |
Details |
| Controller |
Realtek GbE LAN chip |
| Speed |
1 Gbps / 100 Mbps / 10 Mbps |
Expansion Slots
| Slot |
Source |
Mode / Support |
| 1 x PCIEX16 |
CPU |
Ryzen 7000: PCIe 4.0 x16
Ryzen 8000 Phoenix 1: PCIe 4.0 x8
Ryzen 8000 Phoenix 2: PCIe 4.0 x4 |
| 1 x PCIEX1_3 (x16 slot) |
Chipset |
PCIe 3.0, runs at x1 |
Storage
| Connector |
Source |
Form Factor / Interface |
CPU Support |
| 1 x M2A_CPU |
CPU |
Socket 3, M key, 25110/22110/2580/2280 SSDs |
Ryzen 7000: PCIe 5.0 x4/x2
Ryzen 8000 Phoenix 1: PCIe 4.0 x4/x2
Ryzen 8000 Phoenix 2: PCIe 4.0 x4/x2 |
| 1 x M2P_CPU |
CPU |
Socket 3, M key, 22110/2280 SSDs |
Ryzen 7000: PCIe 4.0 x2
Ryzen 8000 Phoenix 1: PCIe 4.0 x2
Ryzen 8000 Phoenix 2: PCIe 4.0 x2 |
| 1 x M2C_SB |
Chipset |
Socket 3, M key, 22110/2280, PCIe 4.0 x4/x2 |
— |
| 4 x SATA 6Gb/s |
Chipset |
SATA 6Gb/s |
— |
RAID Support:
- NVMe SSDs: RAID 0, 1, 10
- SATA drives: RAID 0, 1, 10
USB
CPU:
- 2 x USB 3.2 Gen 2 Type-A (red, rear panel)
- 1 x USB Type-C (rear panel) with USB 3.2 Gen 1 support
CPU + USB 2.0 Hub:
- 4 x USB 2.0/1.1 ports on rear panel
Chipset:
- 2 x USB 3.2 Gen 1 ports via internal header
- 1 x USB Type-C with USB 3.2 Gen 1 support via internal header
- 4 x USB 2.0/1.1 ports (2 on back panel, 2 via internal header)
Chipset + USB 2.0 Hub:
- 4 x USB 2.0/1.1 ports via internal headers
Internal I/O Connectors
- 1 x 24-pin ATX main power connector
- 1 x 8-pin ATX 12V power connector
- 1 x CPU fan header
- 1 x CPU fan/water cooling pump header
- 2 x system fan headers
- 1 x system fan/water cooling pump header
- 3 x addressable RGB Gen2 LED strip headers
- 1 x RGB LED strip header
- 3 x M.2 Socket 3 connectors
- 4 x SATA 6Gb/s connectors
- 1 x front panel header
- 1 x front panel audio header
- 1 x USB Type-C header (USB 3.2 Gen 1)
- 1 x USB 3.2 Gen 1 header
- 3 x USB 2.0/1.1 headers
- 1 x Trusted Platform Module header (for GC-TPM2.0 SPI / GC-TPM2.0 SPI 2.0 / GC-TPM2.0 SPI V2)
- 1 x Q-Flash Plus button
- 1 x serial port header
- 1 x Clear CMOS jumper
Back Panel Connectors
- 1 x DisplayPort
- 1 x HDMI port
- 1 x PS/2 keyboard/mouse combo port
- 1 x USB Type-C (USB 3.2 Gen 1)
- 2 x USB 3.2 Gen 2 Type-A (red)
- 6 x USB 2.0/1.1 ports
- 1 x RJ-45 LAN port
- 3 x audio jacks
I/O Controller & Monitoring
| Category |
Details |
| I/O Controller |
iTE I/O Controller Chip |
| Monitoring |
Voltage, temperature, fan speed, water cooling flow rate |
| Alerts & Control |
Fan fail warning, fan speed control |
BIOS
- 1 x 256 Mbit flash
- AMI UEFI BIOS (licensed)
- Standards: PnP 1.0a, DMI 2.7, WfM 2.0, SM BIOS 2.7, ACPI 5.0
Operating System Support
- Windows 11 64-bit
- Windows 10 64-bit
The GIGABYTE B650 EAGLE combines durable hardware, flexible connectivity, advanced cooling control, and straightforward BIOS update features, making it a strong AM5 foundation for modern AMD Ryzen systems.
